The speedy buildout of fast-charging stations for electric vehicles is testing the bounds of at present’s power grid. With particular person chargers drawing 350 to 500 kilowatts (or more), which makes charging instances for EVs now functionally equal to the fill-up time for a gasoline or diesel automobile, full charging websites can attain megawatt-scale demand. That’s sufficient to pressure medium-voltage distribution networks—the section of the grid that hyperlinks high-voltage transmission traces with the low-voltage traces that serve finish customers in properties and companies.
DC fast charging stations are usually clustered in city facilities, alongside highways, and in fleet depots. As a result of the load is just not unfold evenly throughout the community, explicit substations are overworked—even when general grid capability is rated to accommodate the load. Overcoming this downside as extra charging stations, with higher energy calls for, come on-line requires power electronics that aren’t solely compact and environment friendly, but additionally able to managing native storage and renewable inputs.
One of the crucial promising applied sciences for modernizing the grid so it will possibly sustain with the calls for of car electrification and renewable era is the solid-state transformer (SST). An SST performs the identical fundamental perform as a traditional transformer—stepping voltage up or down. But it surely does so utilizing semiconductors, high-frequency conversion with silicon carbide or gallium nitride switches, and digital management, as an alternative of passive magnetic coupling alone. An SST’s setup permits it to manage energy circulate dynamically.
For many years, charging infrastructure has relied on line-frequency transformers (LFTs)—huge assemblies of iron and copper that step down medium-voltage AC to low-voltage AC earlier than or after exterior conversion from alternating present to the direct current that EV batteries require. A typical LFT can comprise as a lot as a number of hundred kilograms of copper windings and some tonnes of iron. All that steel is costly and increasingly difficult to source. These programs are dependable however cumbersome and inefficient, particularly when power flows between native storage and automobiles. SSTs are a lot smaller and lighter than the LFTs they’re designed to exchange.
“Our answer achieves the identical semiconductor gadget depend as a single-port converter whereas offering a number of independently managed DC outputs.” –Shashidhar Mathapati, Delta Electronics
However most multiport SSTs developed to date have been too advanced or pricey (between 5 and 10 instances the upfront value of LFTs). That distinction—plus SSTs’ reliance on auxiliary battery banks that add extra expense and scale back reliability—explains why solid-state’s apparent advantages haven’t but incentivized shifting to the know-how from LFTs.

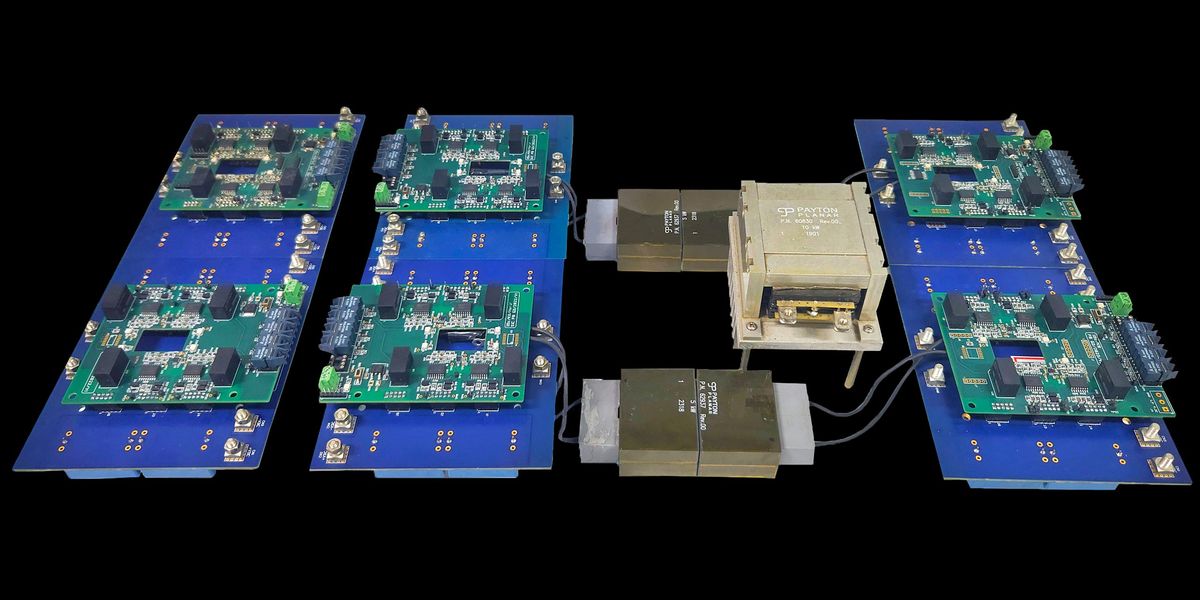

Surjakanta Mazumder, Saichand Kasicheyanula, Harisyam P.V. and Kaushik Basu maintain their SST prototype in a lab.Harisyam P.V., Saichand Kasicheyanula, et al.
Methods to Make Strong-State Transformers Extra Environment friendly
In a study revealed on 20 August in IEEE Transactions on Power Electronics, researchers at the Indian Institute of Science and Delta Electronics India, each in Bengaluru, proposed what’s referred to as a cascaded H-bridge (CHB)–primarily based multiport SST that eliminates these compromises. “Our answer achieves the identical semiconductor gadget depend as a single-port converter whereas offering a number of independently managed DC outputs,” says Shashidhar Mathapati, the CTO of Delta Electronics. “Which means no extra battery storage, no further semiconductor units, and no further medium-voltage insulation.”
The group constructed a 1.2-kilowatt laboratory prototype to validate the design, attaining 95.3 % effectivity at rated load. Additionally they modeled a full-scale 11-kilovolt, 400-kilowatt system divided into two 200-kilowatt ports.
On the coronary heart of the system is a multi-winding transformer situated on the low-voltage facet of the converter. This configuration avoids the necessity for pricey, cumbersome medium-voltage insulation and permits energy balancing between ports with out auxiliary batteries. “Earlier CHB-based multiport designs wanted a number of battery banks or capacitor networks to even out the load,” the authors wrote of their paper. “We’ve proven you may obtain the identical consequence with an easier, lighter, and extra dependable transformer association.”
A brand new modulation and management technique maintains a unity energy issue on the grid interface, that means that none of the present coming from the grid goes to waste by oscillating backwards and forwards between the supply and the load with out doing any work. The SST described by the authors additionally permits every DC port to function independently. In sensible phrases, every automobile linked to the charger would have the ability to obtain the suitable voltage and present, with out affecting neighboring ports or disturbing the grid connection.
Utilizing silicon-carbide switches linked in sequence, the system can deal with medium-voltage inputs whereas sustaining excessive effectivity. An 11-kilovolt grid connection would require simply 12 cascaded modules per part, which is roughly half as many as some modular multilevel converter designs. Fewer modules in the end means decrease value, less complicated management, and higher reliability.
Though nonetheless on the laboratory stage, the design may allow a brand new era of compact, cost-effective fast-charging hubs. By eradicating the necessity for intermediate battery storage—which provides value, complexity, and upkeep—the proposed topology may lengthen the operational lifespan of EV charging stations.
In line with the researchers, this converter isn’t just for EV charging. Any utility that wants medium-voltage to multiport low-voltage conversion—similar to data centers, renewable integration, or industrial DC grids—may benefit.
For utilities and charging suppliers dealing with megawatt-scale demand, this streamlined solid-state transformer may assist make the EV revolution extra grid-friendly, and sooner for drivers ready to cost.
