Charging an EV at dwelling doesn’t look like an inconvenience—till you end up dragging a wire round a storage or down a wet driveway, then unplugging and coiling it again up each time you drive the children to high school or run an errand. For elderly or disabled drivers, these cumbersome cords can be a physical challenge.
Because it was for smartphones years in the past, wireless EV charging has been the dream. However there’s a distinction of almost 4 orders of magnitude between the roughly 14 watt-hours of a typical smartphone battery and that of a big EV. That’s what makes the wireless charging on the 108-kilowatt-hour pack within the forthcoming Porsche Cayenne Electrical so notable.
To supply the primary inductive charger on a manufacturing automobile, Porsche needed to overcome each technical and sensible challenges—resembling how one can shield a beloved housecat prowling under your automobile. The German automaker demonstrated the system at September’s IAA Mobility present in Munich.
With its 800-volt architecture, the Cayenne Electrical can cost at as much as 400 kW at a public DC station, sufficient to fill its pack from 10 to 80 % in about 16 minutes. The wi-fi system delivers about 11 kW for Degree 2 charging at dwelling, the place Porsche says three out of 4 of its prospects do almost all their fill-ups. Pull the Cayenne right into a storage and align it over a floor-mounted plate, and the SUV will cost from 10 to 80 % in about 7.5 hours. No plugs, tangled cords, or soiled fingers. Porsche will supply a single-phase, 48-ampere model for the United States after patrons see their first Cayennes in mid-2026, and a three-phase, 16-A system in Europe.
Porsche’s Wi-fi Charging is Primarily based on an Outdated Idea
The idea of inductive charging has been round for greater than a century. Two coils of copper wire are positioned close to each other. A present flowing via one coil creates a magnetic subject, which induces voltage within the second coil.

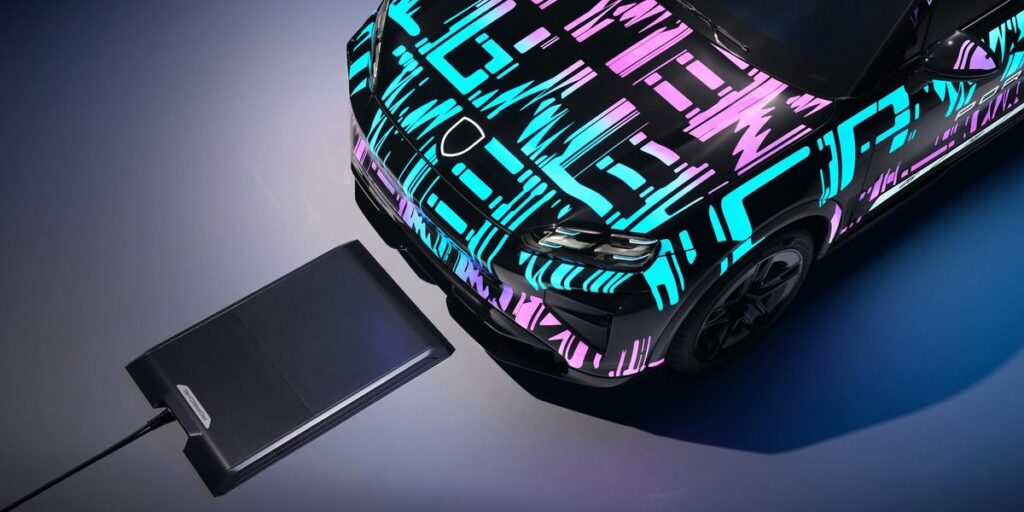

Within the Porsche system, the floor-mounted pad, 78 centimeters large, plugs into the house’s electrical panel. Contained in the pad, which weighs 50 kilograms, grid electrical energy (at 60 hertz in the USA, 50 Hz in many of the remainder of the world) is transformed to DC after which to high-frequency AC at 2,000 V.The ensuing 85-kilohertz magnetic subject extends from the pad to the Cayenne, the place it’s transformed once more to DC voltage.
The waterproof pad may also be positioned outdoor, and the corporate says it’s unaffected by leaves, snow, and the like. In reality, the air-cooled pad can get heat sufficient to soften any snow, reaching temperatures as excessive as 50 °C.
The Cayenne’s onboard charging {hardware} mounts between its entrance electric motor and battery. The 15-kg induction unit wires instantly into the battery.
In most EVs, plug-in (conductive) AC charging tops out at around 95 percent effectivity. Porsche says its wi-fi system delivers 90 % effectivity, regardless of an air hole of roughly 12 to 18 cm between the pad and car.
Final yr, Oak Ridge National Laboratory transferred a formidable 270 kilowatts to a Porsche Taycan with 95 % effectivity.
“We’re tremendous proud that we’re just under conductive AC in charging effectivity,” says Simon Schulze, Porsche’s product supervisor for charging {hardware}. Porsche additionally beats inductive telephone chargers, which generally max out at about 70 % effectivity, Schulze says.
When the automobile will get inside 7.5 meters of the charging pad, the Cayenne’s screen-based parking-assist system activates routinely. Then comes a sort of online game that requires the driving force to align a pair of inexperienced circles on-screen, one representing the automobile, the opposite the pad. It’s like a digital model of the tennis ball some individuals grasp of their storage to gauge parking distance. There’s ample wiggle room, with tolerances of 20 cm left to proper, and 15 cm fore and aft. “You’ll be able to’t miss it,” in response to Schulze.
Induction loops detect any objects between the charging plate and the car; such objects, in the event that they’re steel, might warmth up dangerously. Radar sensors detect any residing issues close to the pad, and can halt the charging if obligatory. Individuals can stroll close to the automobile or hop aboard with out affecting a charging session.
Christian Holler, Porsche’s head of charging techniques, says the system conforms to Worldwide Fee on Non-Ionizing Radiation Safety requirements for electromagnetic radiation. The sector stays under 15 microteslas, so it’s protected for people with pacemakers, Porsche insists. And the aforementioned cat wouldn’t be harmed even when it strayed into the magnetic subject, although “its steel collar would possibly get heat,” Schulze says.
The Porsche system’s 90 % effectivity is spectacular however not record-setting. Final yr, Oak Ridge Nationwide Laboratory (ORNL) transferred 270 kW to a Porsche Taycan with 95 % effectivity, boosting its state of cost by 50 % in 10 minutes. That world-record wireless rate relied on polyphase windings for coils, a part of a U.S. Department of Energy challenge that was backed by Volkswagen, Porsche’s dad or mum firm.
That effort, Holler says, spawned a Ph.D. paper from VW engineer Andrew Foote. But the challenge had completely different targets from the one which led to the Cayenne charging system. ORNL was centered on most energy switch, no matter value, manufacturing feasibility, or reliability, he says.
Against this, designing a system for showroom vehicles “requires a totally completely different degree of high quality and processes,” Holler says.
Excessive Price May Restrict Adoption
Cayenne patrons in Europe pays round €7,000 (roughly US $8,100) for the non-compulsory charger. Porsche has but to cost it for the USA.
Loren McDonald, chief government of Chargeonomics, an EV-charging evaluation agency, stated wi-fi charging “is clearly the longer term,” with use circumstances resembling driverless robotaxis, curbside charging, or at any website “the place charging cables is likely to be an annoyance or perhaps a security difficulty.”
However for now, inductive charging’s pricey, low-volume standing will restrict it to area of interest fashions and high-income adopters, McDonald says. Public adoption can be vital “in order that drivers can convenience-charge all through their driving day—which then will increase the advantages of spending more cash on the system.”
Porsche acknowledges that difficulty; the system conforms to wi-fi requirements set by the Society of Automotive Engineers in order that different automakers would possibly assist popularize the know-how.
“We didn’t need this to be proprietary, a Porsche-only resolution,” Schulze says. “We solely profit if different manufacturers use it.”
