One summer time day in 1941, a British radio operator was monitoring German navy frequencies and heard one thing sudden in her headphones. A later report known as it “unusual new music.” Sounding in contrast to the acquainted Morse dit-dit-dah of enciphered messages despatched over the German Enigma community, the “new music” was a rhythmic warble of binary teletype code being transmitted at excessive pace.
Germany’s wartime engineers had developed a radically new encryption and transmission system. It was far more superior than Enigma, which was patented in 1920.
To interrupt the advanced new cipher, engineer Tommy Flowers constructed Colossus, the world’s first large-scale programmable digital digital pc. Flowers beforehand constructed Enigma-related codebreaking tools for Alan Turing, the British mathematician.
Colossus was put in within the British codebreaking headquarters at Bletchley Park, about 80 kilometers from London. The room-size machine weighed round a tonne.
The pc is being commemorated as an IEEE Milestone. The dedication ceremony is scheduled to be held 29 September at Bletchley Park.
Decrypting Germany’s unusual new music
Britain’s high codebreakers have been shortly everywhere in the new “music” being picked up by the intercept stations. Figuring out it as encrypted teletype code was the simple half. The actual drawback was determining how the encryption machine labored. Its producer was found on the finish of the warfare: Berlin engineering agency C. Lorenz.
However in 1941, the Lorenz machine was only a black field to the British. They codenamed it “Tunny,” a British time period for tuna fish. The Enigma breakers had set a precedent for utilizing piscine codenames akin to Dolphin, Lumpsucker, and Porpoise.
Enigma had three or 4 encrypting wheels. The codebreakers guessed that the Tunny machine additionally used a system of rotating wheels to encrypt messages. An vital clue was that every one the intercepted messages shared a curious characteristic: Every started with an uncoded checklist of 12 widespread German names, together with Anton, Bertha, Conrad, and Dora. The codebreakers guessed that Tunny had 12 wheels and that the 12 names and their order by some means instructed the receiving operator which mixture they need to twist the wheels to earlier than decrypting the message.
Then the British had a rare piece of excellent fortune. John Tiltman, head of the analysis part at Bletchley Park, began analyzing a pair of intercepted messages, every round 1,200 characters lengthy. Unusually, each started with the identical sequence of names. The second message turned out to be a retype of the primary, with minor variations in punctuation, a number of abbreviations, and different small divergences. Tiltman managed to decrypt the 2 ciphertexts utilizing a combination of educated guesswork and instinct. The ensuing 1,200 or so pairings of ciphertext and plaintext characters proved to be sufficient data to infer the workings of the Tunny machine.
That was due to Bill Tutte, a quiet younger codebreaker who spent weeks poring over the pairings. At some point, he shyly introduced to his superiors how Tunny labored. His description was uncannily correct.
The following step within the Tunny machine’s downfall was achieved by Turing, contemporary from his successes in opposition to Enigma.
Information of how the Tunny machine labored was not sufficient to decrypt the messages. Codebreakers additionally required detailed details about how the wheels of the sender’s machine had been arrange. There have been adjustable pins across the circumference of every wheel: In considered one of its two attainable positions, a pin would contribute a 1 to the encryption course of, and within the different, a 0. The pins have been reset on occasion.
The codebreakers additionally wanted to know the wheels’ positions initially of the message—which the German operators gave away within the checklist of 12 names.
Turing invented a difficult methodology, known as “Turingery,” that enabled codebreakers to infer the positions of the pins from nothing however intercepted ciphertext.
After that, the message may very well be decrypted, utilizing the checklist of names and a British duplicate of the Tunny machine.
The idea of Turingery was a process that Turing launched, known as “delta-ing” (from the Greek letter delta). Also referred to as “differencing,” the method used “sideways” addition: To delta the 4 letters ABCD, you add (on the bit degree) A to B, B to C, and C to D. Turing used delta-ing to disclose details about the wheels.
Tunny messages, typically signed by Adolph Hitler himself, turned out to be pure gold for the Allies. The machine was utilized in Berlin by the Armed Forces High Command to speak with front-line generals directing the warfare within the Jap and Western theaters.
As soon as the system was damaged, the Allies may snoop on prolonged back-and-forth communications between the architects of Germany’s battle plans.
Turingery was the codebreakers’ solely weapon in opposition to Tunny for a 12 months, throughout which they managed to decrypt 1.5 million letters of ciphertext.
However all the things modified when these useful lists of names initially of every message disappeared.
On the identical time, Turingery was turning into much less efficient. Turing’s methodology trusted the German sender mistakenly utilizing the identical wheel settings to encrypt two differing messages. As safety tightened throughout the Tunny community, the blunder turned rarer.
Fortuitously, Tutte had been at work devising a unique decryption methodology, based mostly on Turing’s delta-ing however taking a novel strategy.
Constructing the Colossus pc
Tutte had discovered a approach of deducing wheel data from ciphertext, with no checklist of names or blunders by the German operators required. His methodology made use of statistical properties of the Tunny machine itself.
At first, it wasn’t clear how one can apply his statistical methodology, nevertheless. The Tunny breakers labored by hand. Making use of Turingery to a message was like fixing a monster Sudoku or crossword puzzle.
Tutte’s statistical methodology required scads of routine binary math, in addition to a colossal quantity of counting lengthy binary sequences. If the method have been accomplished by hand, one message may take months to decrypt. What was wanted was a machine to automate the method.
Engineer Thomas H. Flowers developed Colossus to interrupt a complexnew German cipher.Pictorial Press/Alamy
The primary plan was to construct a machine from electromagnetic relays, including a few dozen vacuum tubes to hurry up the counting. Digital tubes have been a lot quicker than electromagnetic relays, which had slow-moving steel parts. Issues with the circuit design bedeviled the machine’s relay-based logic unit, nevertheless.
Flowers was beneficial by Turing and introduced in to troubleshoot. He was on mortgage to Bletchley Park from the Post Office Research Station in London, the place he had spent the prewar years designing experimental switching tools involving hundreds of vacuum tubes.
On the time, it was generally believed that tubes couldn’t be utilized in massive numbers as a result of every one contained a scorching filament. This meant tubes have been vulnerable to sudden dying. In a big set up, it could not be lengthy earlier than one tube blew and issues stopped working correctly.
Flowers found that switching tubes on and off careworn them, however leaving them on constantly made them extra dependable than relays. He provided to construct Bletchley Park a high-speed, all-electronic machine containing round 2,000 tubes.
Bletchley Park’s advisors rejected the thought, satisfied that such a machine would by no means work reliably. However Flowers, assured of his proposed design, retreated to his London laboratory and quietly constructed the digital machine that he believed the codebreakers wanted. He and his small staff of engineers labored day and night time for 10 months to create Colossus.
In January 1944 a few of his engineers confirmed up at Bletchley Park with the world’s first large-scale programmable digital digital pc packed onto the again of a truck. Colossus was reassembled and practical in about two weeks, and it notched up its first German message on 5 February 1944.

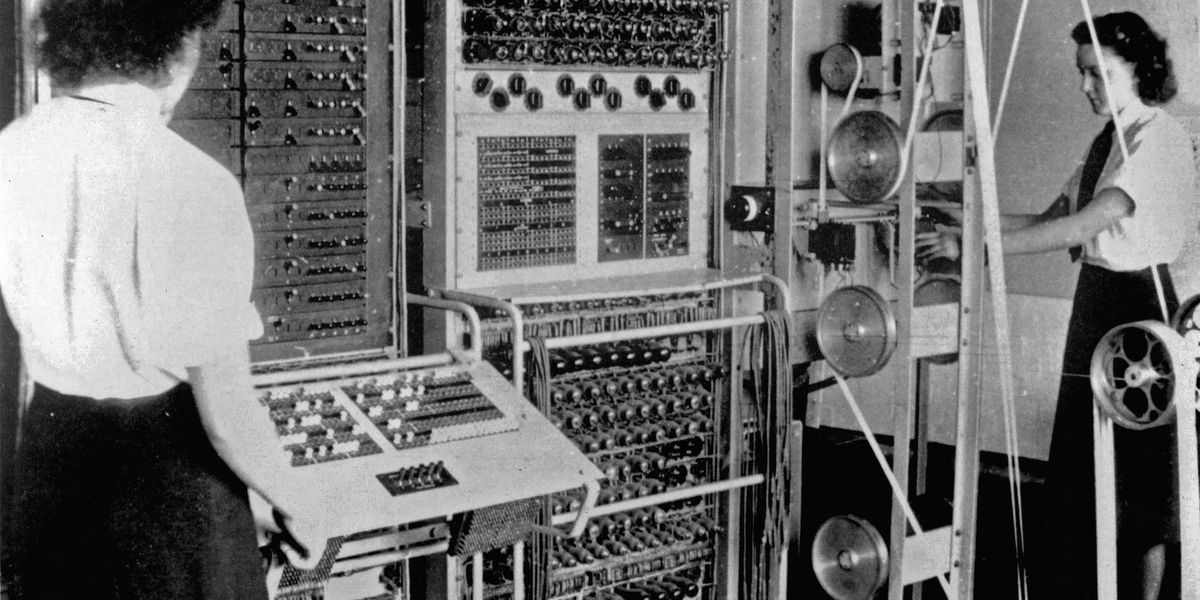

The machine learn the enter—Tunny ciphertext—photoelectrically from a big loop of punched paper tape. The output—details about the wheels—went to a primitive printer that Flowers’ engineers had created from a guide typewriter, becoming relays to automate the keys. As soon as Colossus had cracked sufficient of the Tunny machine’s wheels, the data was handed on to the hand-breakers, who took over.
The codebreakers have been astonished by Colossus.
“I don’t assume they understood very clearly what I used to be proposing till they really had the machine,” Flowers stated in a 1977 interview. “They simply couldn’t consider it!”
Colossus was described in nearly loving phrases in a since-declassified report written at Bletchley Park in 1945:
It’s regretted that it isn’t attainable to offer an sufficient thought of the fascination of a Colossus at work: its sheer bulk and obvious complexity; the improbable pace of skinny paper tape around the glittering pulleys; the infantile pleasure of not-not, span, print essential heading and different gadgets; the wizardry of purely mechanical decoding letter by letter (one novice thought she was being hoaxed); the uncanny motion of the typewriter in printing the right scores with out and past human assist; the stepping of show; intervals of keen expectation culminating within the sudden look of the longed-for rating; and the unusual rhythms characterizing each kind of run: the stately break-in, the erratic brief run, the regularity of wheel-breaking, the stolid rectangle interrupted by the wild leaps of the carriage-return, the frantic chatter of a motor run, even the ludicrous frenzy of hosts of bogus scores.
The demand for extra Colossi
Bletchley Park’s managers, now not leery of Flowers’s concepts, quickly needed further Colossi. He completed constructing the second in June 1944, days earlier than D-Day and the Allied invasion of Europe. With 2,400 vacuum tubes—round 800 greater than in Colossus I—Colossus II processed Tunny messages at an eye-watering pace of 25,000 characters per second.
Its maximized timing-pulse price was not far in need of the efficiency of the primary Intel microprocessor chip from the Seventies, greater than 30 years later.
Flowers conceded that “Colossus bore about as a lot resemblance to a contemporary pc as Stephenson’s [1829] Rocket locomotive did to the Royal Scot,” a state-of-the-art Twentieth-century prepare working between London and Glasgow. However he emphasised that, however, Colossus “embodied all the essential options of a contemporary pc.” In Colossus, Flowers had pioneered clock pulses, bit-stream mills, management circuits, loops, counters, shift registers, interrupts, parallel processing, and extra.
Because the Allies slowly fought their approach towards Germany, the Colossi poured out wheel data, and the codebreakers supplied the navy with an unparalleled view of German methods, strengths, weaknesses, and tactical intentions.
Even with that mass of detailed intelligence, it took the Allies nearly a 12 months to maneuver from Northern France to the German heartland. Nobody can say for certain how for much longer the preventing would have lasted if the intelligence breakthrough had not occurred. But when Colossus and the codebreakers shortened the warfare even by solely six months, the variety of lives saved was within the thousands and thousands.
There have been 10 Colossi at Bletchley Park by the top of the warfare, housed in two huge, steel-frame, bombproof buildings, working day and night time. Though hid behind a thick veil of secrecy, Bletchley Park accommodated the world’s first digital computing facility. It was directed by Max Newman, the mathematician who mentored Turing in prewar Cambridge.
I don’t assume they understood very clearly what I used to be proposing till they really had the machine. They simply couldn’t consider it!”—Tommy Flowers
When the preventing ended, authorities determined that ultrasecrecy have to be maintained, and orders have been issued to interrupt up the Colossi. Solely two have been spared.
“All that was left have been the deep holes within the ground the place the machines had stood,” Colossus operator Dorothy Du Boisson recalled in an interview for the e book Colossus: The Secrets of Bletchley Park’s Codebreaking Computers. Norman Thurlow, considered one of Flowers’s engineers who was additionally interviewed, remembered being instructed in a workers memo that if the secrecy was ever lifted, he and his colleagues would possibly be capable to inform their grandchildren about Colossus and “the tapes that span on silver wheels.”
IEEE Milestone dedication at Bletchley Park
The Milestone plaque recognizing Colossus is to be displayed exterior Block H at Bletchley Park, close to Milton Keynes, England.
The plaque is to learn:
Six Colossus codebreaking computer systems operated on this constructing in 1944–1945. Designed by Thomas H. Flowers of the British Submit Workplace, they enabled deciphering of encrypted radio messages transmitted between German instructions throughout occupied Europe, North Africa, and the Soviet Union. The ensuing navy intelligence saved numerous lives and helped shorten World Warfare II. As the primary profitable large-scale software of digital electronics to computing, Colossus anticipated subsequent pc developments.
The IEEE United Kingdom and Ireland Section sponsored the nomination.
Reviewed by the IEEE History Committee and awarded by the IEEE Board of Directors, IEEE Milestones acknowledge excellent technical developments around the globe which might be not less than 25 years previous. The Milestone program is run by the IEEE history and heritage group.
To be taught extra about historic figures in engineering, IEEE Milestones, and IEEE History Middle packages and occasions, try our IEEE Tech History collection. IEEE Spectrum additionally covers features of tech history.
