In fashionable automated manufacturing, six-axis articulated robots carry out high-speed, multidirectional maneuvers underneath demanding operational cycles. Nonetheless, as robotic arms swivel, rotate, and lengthen, {the electrical} cables, fiber optics, and pneumatic hoses supplying them endure extreme mechanical stress. Torsional twist, speedy acceleration, and repeated contact with machine constructions usually result in untimely conductor fatigue, insulation breakdown, and dear unplanned manufacturing halts.
To beat these multi-axis movement challenges, the Tsubaki KabelSchlepp Robotrax System gives a specialised three-dimensional cable service engineered particularly for complicated robotic movement.
Managing Excessive Tensile Forces With Central Metal Expertise
Typical cable carriers usually switch operational motion stress instantly onto inner electrical traces and hoses. The Robotrax system adjustments this dynamic by a central metal cable that runs by the core of each chain hyperlink.
The Robotrax system’s central metal cable absorbs the first tensile masses and preserves conductor integrity, dramatically extending cable service life.
When robotic arms bear speedy directional shifts and accelerations as much as 10 g, this inner metal cable absorbs the first tensile masses. By isolating electrical and fluid traces from pulling forces, the design preserves conductor integrity and dramatically extends cable service life. Mechanics can simply calibrate and regulate system rigidity utilizing an built-in clamping piece, guaranteeing constant mechanical assist all through lengthy operational cycles.
Spherical Hyperlink Design and Modular Cable Routing
The muse of the Robotrax system lies in its open, single-piece plastic hyperlinks that includes spherical snap-on connections on each side. This geometry permits the service to flex easily throughout three axes, offering radial rotation of as much as ±450 levels per meter relying on the mannequin dimension.
To optimize inner group, service hyperlinks include as much as three distinct chambers. This bodily separation prevents sign interference and mechanical abrasion between heavy power lines, delicate information channels, and fluid hoses. For traditional fashions (R040 by R100), technicians can press cables instantly into the service with out instruments, drastically decreasing set up and upkeep time. Bigger configurations, such because the R140X, incorporate swiveling crossbars with snap locks alongside vertical and horizontal dividers for personalized inside partitioning.
Lively Retraction and Affect Safety
Giant robotic work envelopes and high-speed movement trajectories may cause unfastened cable service loops to swing and strike the robotic physique. To remove these harmful collisions, Tsubaki KabelSchlepp integrates the Pull Again Unit (PBU).
The PBU serves as an energetic retraction mechanism that maintains optimum rigidity on the cable service all through the complete movement cycle. By stopping extra slack and eliminating interfering contours, the PBU minimizes collision dangers throughout complicated motion paths. The unit requires zero upkeep on its retraction aspect and gives customary mounting configurations for main industrial robot platforms, together with KUKA, ABB, and FANUC.

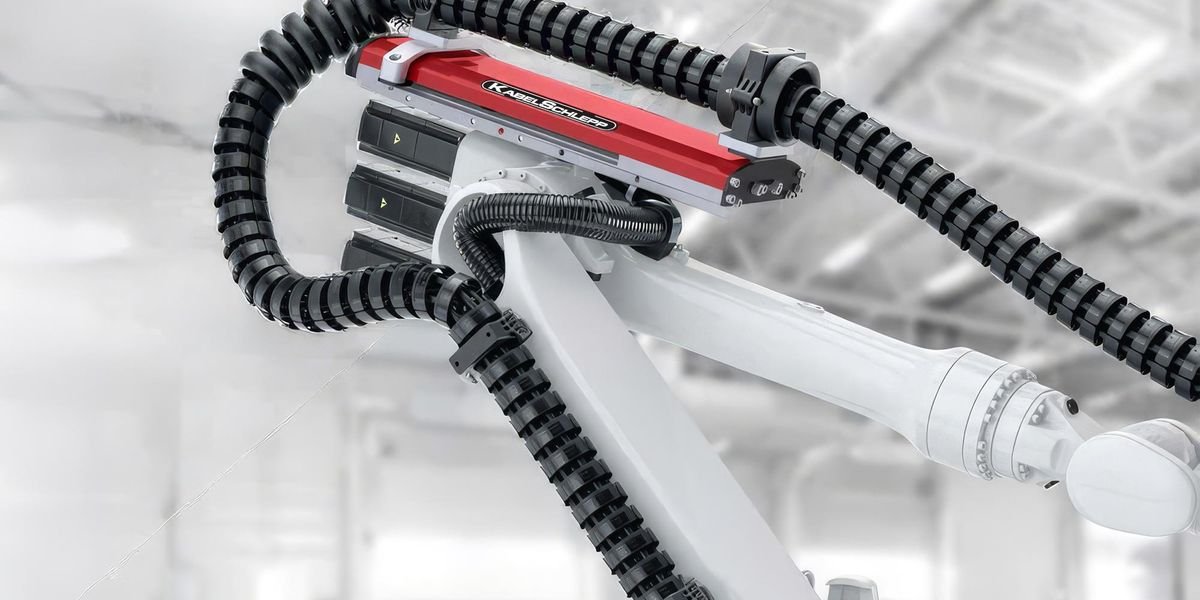

Tsubaki KabelSchlepp’s Pull Again Unit maintains optimum rigidity on the cable service and minimizes collision dangers throughout complicated motion paths.
Moreover, exterior protectors may be retrofitted onto particular person chain hyperlinks. These sturdy influence shields restrict the minimal bending radius to stop over-flexing whereas shielding the chain physique from extreme exterior abrasion. If put on happens, technicians merely exchange the modular protector slightly than the complete cable service meeting.
Constructed for Demanding Industrial Environments
From automotive welding cells to high-speed machining facilities, Robotrax methods adapt to extreme working situations by tailor-made protecting equipment:
- Warmth Shields: Aluminum-coated textile fiber covers shield towards radiated warmth, sizzling weld spatter, and flying sparks.
- Protecting Covers: Coated polyester sleeves defend delicate traces towards aggressive chopping fluids, hydraulic oils, paint overspray, and abrasive mud.
- LineFix Pressure Reduction: Multi-layer clamping gadgets anchor cables securely at each ends to stop axial displacement throughout intense movement.
By combining central load absorption, multi-axis flexibility, and energetic retraction management, the Robotrax system gives plant engineers and system integrators a dependable path towards maximizing robotic uptime and decreasing complete operational prices.
