What may you do for those who may make a circuit hint by simply bending a chunk of paper? How about bridging trendy applied sciences and conventional handicrafts whereas offering alternatives for studying expertise in each.
As a part of our interdisciplinary analysis into digital craftsmanship on the MEI Lab at the School of Creative Media, City University of Hong Kong, we got here throughout research that demonstrated how to impregnate paperlike material (technically a “nonwoven textile”) with the form of liquid metal used to make conductive ink. Initially, the impregnated materials is nonconductive as a result of an insulating oxide layer kinds that encapsulates microscopic droplets of the liquid metal. Nonetheless, making use of strain by way of formed molds will crack open the insulating layer, permitting neighboring particles to merge, and thus creating conducting areas within the form of the mildew.
Each of us had been launched as kids to origami and kirigami (just like origami, besides that chopping is allowed along with folding). We, together with our colleagues, determined to see if these conventional strategies could possibly be used on the brand new materials to get rid of the necessity for molds. Our aim was to permit crafters to make hybrid papercraft creations that contained simply built-in components similar to LEDs and motors.
Particularly, we had been all for the opportunity of combining the separate levels of making a papercraft object and including electrical conductors. Earlier approaches to creating electrified papercraft objects relied on including a separate versatile conductor—similar to adhesive copper tape—to the paper. This will increase the hassle required and runs the chance of making open circuits because the conductive materials conforms to the thing’s form.

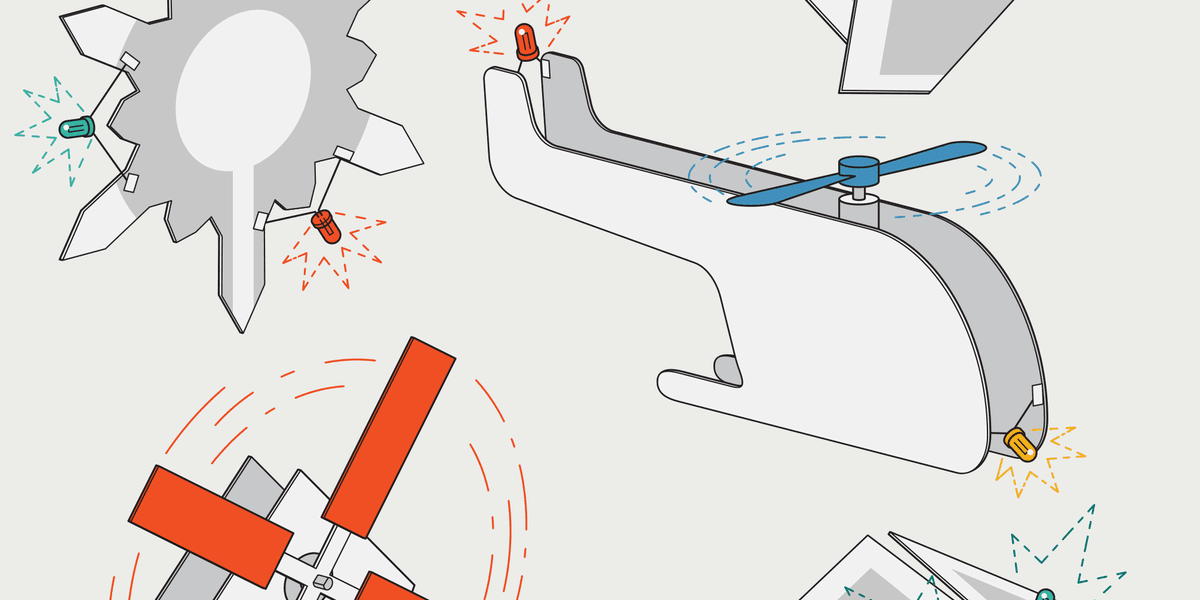

Isopropanol and a gallium-indium liquid materials are used to impregnate a paperlike materials that’s 55 p.c polyester and 45 p.c cellulose. Digital parts similar to LEDs and motors are held in place with masking tape. James Provost
Our first step was to see if the pressures concerned in bending and chopping alone can be adequate to create conductive traces. We grew to become frequent guests to our college’s materials science and engineering division to manufacture samples after which to borrow tools to characterize their habits.
We quickly confirmed that the pressures concerned in folding and chopping—starting from 2.5 to 100 megapascals—had been sufficient to create conductive traces. We additionally confirmed that standard dealing with of the paper didn’t by chance create conductive paths.
We made plenty of adjustments to the unique technique for creating the impregnated paper. For instance, as a substitute of immersing the paper in a combination of isopropanol and liquid metallic, we used an airbrush to spray the combination onto the paper. That allowed us to differ how a lot was deposited on the paper and to make use of cardboard stencils to masks some areas from being impregnated, permitting folding and chopping in these areas with out creating undesirable conductive traces. We additionally experimented with the ratios of isopropanol and liquid metallic.
We grew to become frequent guests to our college’s supplies science and engineering division.
After optimizing the blending ratios and quantity utilized by way of airbrush, we had been left with a fabric that reliably conducts with a resistance of 23.18 ohms per centimeter for reduce edges and 4.4 Ω/cm for folded edges. The folded edges retain their conductivity even when later flattened out, and the conductivity is identical on both aspect of the paper. We estimate the mixed price of the paper and liquid metallic (obtainable from many on-line distributors) is about US $1.80 to make a 10- by 10-cm piece.
The subsequent step was attaching digital parts to the traces. To make the connections extra versatile, we reduce down the inflexible leads of LEDs and connected conductive thread to the stumps. We then held the threads in place utilizing masking tape. Equally, we related conductive thread to the terminals of an influence provide.
As our aim was to make use of this materials educationally, we now wanted to make it simple for a newbie—whether or not in papercraft or electronics—to attempt it out. We created a toolkit, dubbed LiqMetCraft. This consists of all of the required supplies, plus a browser-based software program device that lets the person choose or create designs after which provides steering on bodily development.
We created three variations of LiqMetCraft. The primary is predicated on Chinese language papercraft during which a chunk of paper is folded right into a fanlike section after which reduce to create a radially symmetric design. We offered circles of paper with a doughnot-shape impregnated area, with an untreated area that created a niche within the donut. We connected constructive and destructive terminals to both aspect of the hole. The person may specify within the software program what number of instances they needed to fold the disk after which draw potential cuts, receiving instant suggestions on what the unfolded disk would appear like, in addition to steering on place LEDs.
To make our paper pattern, isopropanol and liquid metallic are blended in particular ratios whereas being cooled by an ice tub. Sonic waves are used to make sure the liquid metallic breaks up into microscopic droplets. The combination is then utilized by way of airbrush, whereas stencils stop some areas being coated for various papercraft templates. James Provost
The second model of LiqMetCraft was primarily based on origami. We provided rectangular items of paper with two conductive areas separated by a border down the center. The software program device offered templates for 12 origami designs, with step-by-step directions for folding them. As soon as the mission was accomplished, the person may add parts, similar to a motor, by taping them to the folds.
The ultimate model supported 3D paper mannequin making. On this case, the preliminary paper provided was a rectangle with an untreated rectangular central space. By chopping this paper in half after which additional chopping the halves into patterns separated by a spacer, the person may make varied self-standing fashions. The software program allowed the person to attract a sample on display, after which have a chopping machine produce a template for chopping the impregnated paper.
We had 42 individuals, evenly divided into three teams, check out the completely different variations. All discovered it simple to make use of, and we had been pleasantly stunned that some individuals moved past the provided designs to their very own creations.
For full particulars of the present course of, see our open access LiqMetCraft research paper printed in CHI ‘26: Proceedings of the 2026 CHI Convention on Human Factors in Computing Methods. Sooner or later, we plan to attempt completely different substrates for the impregnating answer, in addition to discover additional varieties of papercraft, similar to pop-up books. We’re additionally all for growing methods to make use of the fabric to assist inputs in addition to outputs by establishing switches and potentiometers instantly out of the fabric. Think about conventional papercraft creations changing into interactive units!
