Beyond 250 kW a server rack can no longer be cooled by a hybrid approach of liquid and air. At this density a 70/30 liquid-air split leaves 75 kW of air load. The air cooling system wanted to maneuver it brings value and complexity few operators will settle for. The reply is near-total warmth seize. Liquid takes successfully all the warmth, air falls beneath 1 p.c of the load, permitting the server to run fanless.
CoolIT builds these loops as we speak from modular coldplate blocks confirmed throughout six generations of fanless designs. Processor thermal design energy (TDP) retains climbing technology over technology. This rising warmth load is now cascading into the reminiscence, networking, storage, and energy parts that when ran comfortably on air.
The warmth escaped the chip
For years the story stayed easy. Cool the processor and let air deal with the remaining. That stability has shifted. As TDP climbs, warmth spreads outward from the processor and cascades into the parts round it. Reminiscence, networking, storage, and energy now run sizzling sufficient to demand liquid of their very own. Engineers designing the following technology of AI servers face a board the place warmth seize rises with each launch.
Past 250 kW per rack, air cooling turns into the bottleneck. Close to-total liquid warmth seize permits fanless AI server designs constructed for the following technology of computing.
New components, new guidelines
In contrast to processors, that are cooled as flat rectangular packages, these peripherals are available a variety of shapes, sizes, and mounting necessities, every with its personal thermal limits. Some run cooler than the processor case temperature, others run hotter, which leaves them delicate to a design tuned just for CPUs and GPUs. Operators want purpose-built options right here, matched to the half slightly than stretched throughout the board.

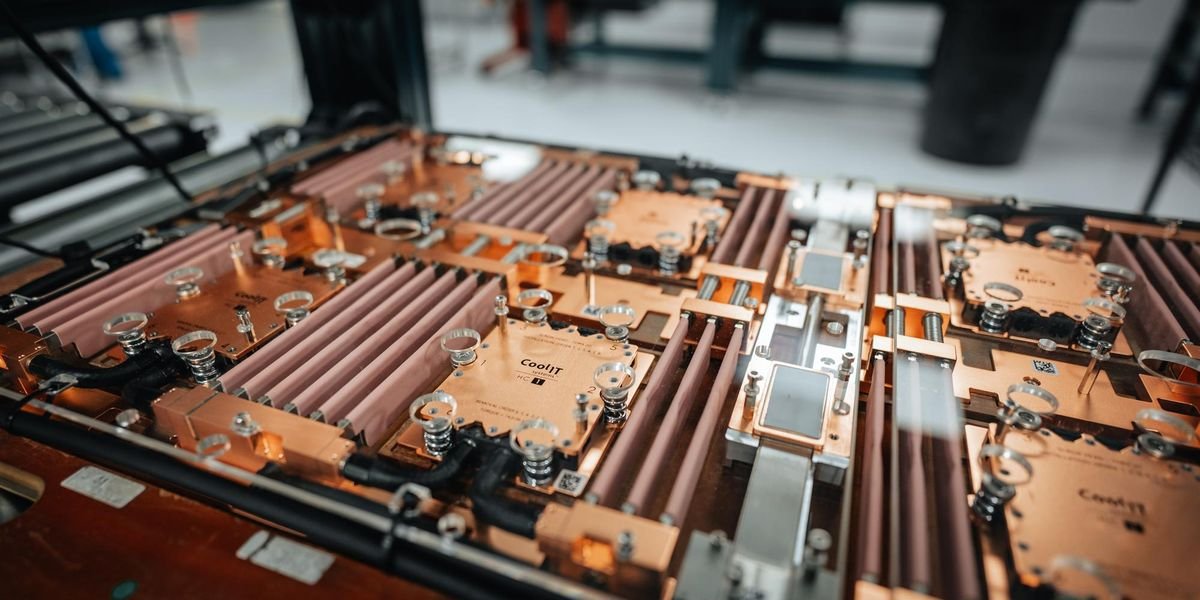

CoolIT engineers meet this with a deep toolkit. Conductive plates, vapor chambers, warmth pipes, and thermal switch plates transfer warmth from parts nearer to the liquid path. Using coldplates allow pluggable parts. Every answer stays true to the element it serves.
CoolIT Buyer Showcase: How GWDG Cools HPC & AI Methods with CoolIT’s Direct Liquid Cooling CoolIT
One loop, one server
Cooling the components is one problem. Uniting them is the true work. Full warmth seize means folding each one among these options right into a single server loop that distributes coolant successfully and stays straightforward to put in. Connection reliability, coolant routing, and the time it takes to assemble the loop at rack integration decide whether or not a design thrives in manufacturing or stalls on the bench. CoolIT builds these loops from confirmed modular blocks, so operators acquire efficiency and deployment pace inside the similar answer.
Density forces the choice
Rack energy continues to climb towards 1 MW, and the case for liquid grows stronger at each step. A 70/30 break up of liquid to air holds comfortably at decrease density. Previous roughly 250 kW it stops working. The 30 p.c left to air turns into a 75 kW load inside a single rack, and shifting that a lot warmth calls for a parallel air system whose value and footprint few operators will settle for. Including density solely widens the hole.
As rack energy continues to climb towards 1 MW, CoolIT’s modeling locations full warmth seize as the usual server design for flagship rack-scale merchandise by way of 2028.
The less complicated, extra environment friendly reply is to seize the warmth in liquid and drop air to lower than 1 p.c of the entire load. True 100% stays nearly not possible to succeed in within the strictest sense, so the trustworthy and achievable goal is near-total seize. That distinction issues to engineers who worth precision, and the course stays clear both means. Full warmth seize strikes from a premium choice to a mainstream requirement as density rises, and CoolIT’s modeling locations it as the usual server design for flagship rack-scale merchandise by way of 2028.
CoolIT delivers it
CoolIT scales warmth seize all the way in which to 100% utilizing modular coldplate constructing blocks confirmed throughout six generations of fanless server designs. Engineering groups are already engaged on designs for the maximum density racks coming subsequent. Because the cascade spreads and racks develop denser, near-total warmth seize turns into the design that keeps AI running.
Talk to CoolIT about constructing a server loop engineered for whole warmth seize.
