In terms of studying digital system design, hobbyists and college students have loads of choices, whether or not it’s tinkering with field-programmable gate arrays or working up chip submission for a Tiny Tapeout run. However related instruments for analog design have been tougher to return by. Definitely you may create analog circuits in a simulator like LTspice and check them in opposition to principle. However nothing beats constructing actual analog circuits and measuring their precise, not theoretical, habits. Measurement is difficult for analog designs as a result of the check gear can have an effect on the very measurement being made.
To handle this academic hole, a team led by me at Columbia University’s department of electrical engineering created MOSbius, a breadboard-friendly chip that you can imagine as a field-programmable transistor array for analog designs.
As its identify suggests, MOSbius is constructed round metal-oxide-semiconductor transistors, divided between n-type and p-type transistors. As these are the constructing blocks of most analog integrated circuits at this time, designing with the MOSbius gives expertise that’s straight related to creating actual chips.
The MOSbius has 68 pins, of which 63 connect with both particular person transistors or frequent analog subcircuits akin to current mirrors and op-amp phases. Two different pins are used for optimistic and unfavorable provide voltages.

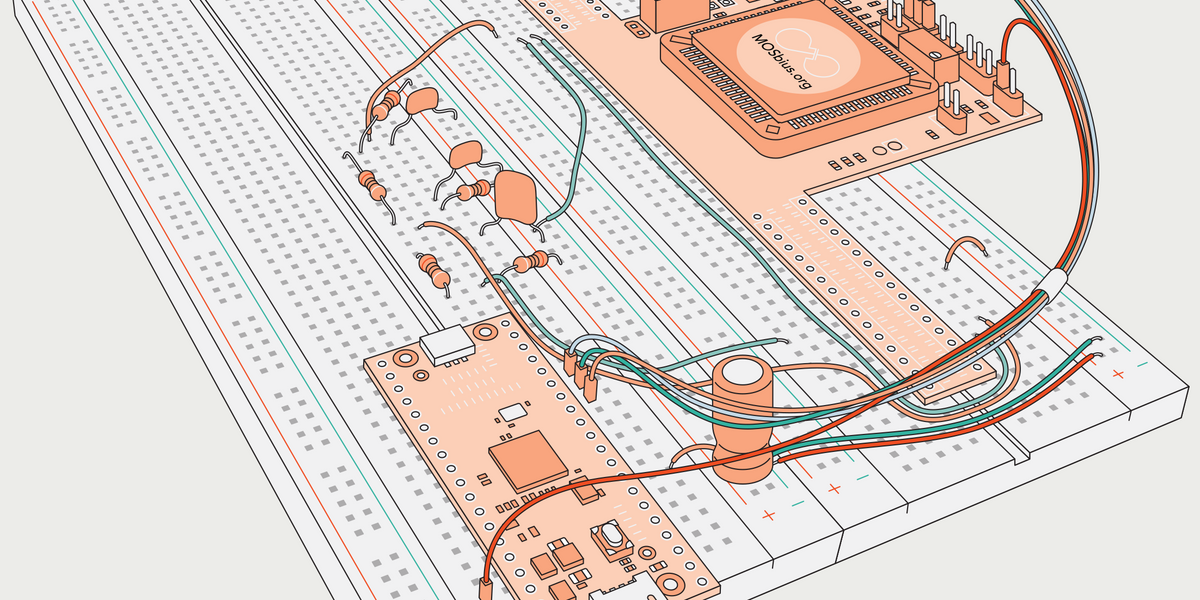

The MOSbius chip [top left] accommodates all of the transistors required for a lot of analog methods. Mounted on a breadboard by way of a printed circuit board [middle], discrete resistors and capacitors [bottom] are wired as much as present different wanted parts. A Raspberry Pi Pico [bottom right] is used to program the MOSbius.James Provost
The remaining three pins are used for programming a built-in swap matrix. You can create circuits with the MOSbius by connecting the pins with exterior wires. But it surely’s simpler to make use of the swap matrix. This could join any of the 65 transistor, subcircuit, and voltage pins to a number of of 10 inside buses. The matrix is programmed by clocking in a easy stream of 650 bits—one bit for every doable connection between a bus and a pin.
We program the MOSbius’s matrix utilizing a Raspberry Pi Pico working a Python script that turns a easy JSON text file into the desired bitstream. In order for you, although, you need to use just about any 3.3-volt microcontroller that helps Python.
The MOSbius runs at 2.5 V. The printed circuit board used to attach the pins to a solderless 830-contact breadboard shifts the Pico’s 3.3 V down when programming the matrix. The PCB additionally contains bias and over-voltage-protection circuits.
How are built-in circuit parts completely different from discrete parts?
Because the MOSbius accommodates solely transistors, circuit parts like resistors and capacitors are wired up externally as through-hole parts inserted into the breadboard. You may assume that utilizing these exterior parts would create an imprecise approximation of the habits of an actual analog IC, which has on-chip resistors and capacitors constructed out of silicon slightly than, say, a steel movie or ceramic materials.
However at sign speeds under a couple of megahertz, the precise difficulty is that these exterior parts are overly exact. (Above 1 MHz, issues just like the stray capacitance of the breadboard start to turn into a difficulty.) Even an inexpensive through-hole resistor can have an precise resistance that’s inside 5 to 10 % of the worth it claims to be, and through-hole resistors with 1 % accuracy are frequent. Against this, built-in parts can simply range by 30 % from their nominal worth.
Consequently, actual analog circuits should be constructed with a substantial quantity of inside margin. Growing the ability to do that depends on understanding what’s occurring at completely different factors inside the circuit, as enter indicators and part values range. And that requires making real-world measurements.
The “aha” second of seeing your circuit come to life will keep lengthy after the equations are forgotten.
In a simulated circuit, you may click on on any node and skim out any parameter with out affecting the circuit’s habits in any method. With the MOSbius, you may equally entry almost each node in a circuit, however now you face the truth that wiring up check probes to make a measurement can change the circuit’s habits. Determining probably the most elegant option to make measurements is essential for anybody hoping to see their concepts dedicated to silicon. The “aha” second of seeing your circuit come to life will keep lengthy after the equations and evaluation are forgotten
MOSbius’s skill to let people poke round inside the center of an built-in circuit design takes inspiration from the Three Fives Discrete Timer Kit, which makes use of discrete parts to re-create the workings of one of the crucial well-liked built-in circuits of all time, the 555. You possibly can after all use the MOSbius to re-create a 555, in addition to many different demonstration circuits, beginning with the “Hi there world!” of {hardware}, a blinking LED.
Metallic-oxide transistors and generally used subcircuits are related to many of the pins of the MOSbius chip. They may also be wired collectively internally utilizing a set of buses programmed utilizing a 650-bit stream from a microcontroller. James Provost
The origin of the MOSbius was serendipitous: Whereas getting ready a set of scholars’ IC tasks to be fabricated, we realized we had room to squeeze yet another chip into the batch if we might meet the transport deadline. Six weeks later, the MOSbius was off to manufacturing!
From this restricted run—150 chips in complete—we’re making MOSbius kits out there at a nominal worth of US $150 (topic to vary and simply to recuperate our prices) to different educators taken with bringing it to their labs. We’re additionally engaged on a revised model. The MOSbius can be utilized to make circuits that vary in complexity from these appropriate for undergraduates to graduate-level tasks. The Web site has an entire set of tutorials and a lab experiments manual able to go. In case you’re taken with acquiring a package, you may contact me through the site.
I understand we now have solely a small variety of kits out there—we’re in any case a college division, not a semiconductor producer—however we wish to make the MOSbius extra broadly out there to each educators and fans sooner or later. One of the simplest ways to make that occur is to contact me, as a result of robust demand is one thing we will current to a industrial accomplice!
