Lithium-ion batteries’ potential to ship numerous energy from a small bundle have made them the go-to for makers and producers alike. It’s commonplace now to search out, say, microcontroller boards with integrated Li-ion chargers. Lithium-ion is so popular, the truth is, that it’s simple to overlook that different battery applied sciences exist, even after they’re a greater match.
These worthy options embody detachable rechargeable nickel–metal hydride batteries. Whereas NiMH cells can’t be recharged as many instances as lithium-ion cells can and don’t supply the identical power density, they’re cheaper and in addition safer. No have to ship them in packing containers emblazoned with fire warning labels. The truth that NiMH cells ship decrease voltages than lithium has turn out to be much less of a problem because the voltage calls for of integrated circuits have fallen, with 3.3-volt and 1.8-V chips quickly displacing the ever present 5-V commonplace of yesteryear.
Methods to Make NiMH Simpler to Handle

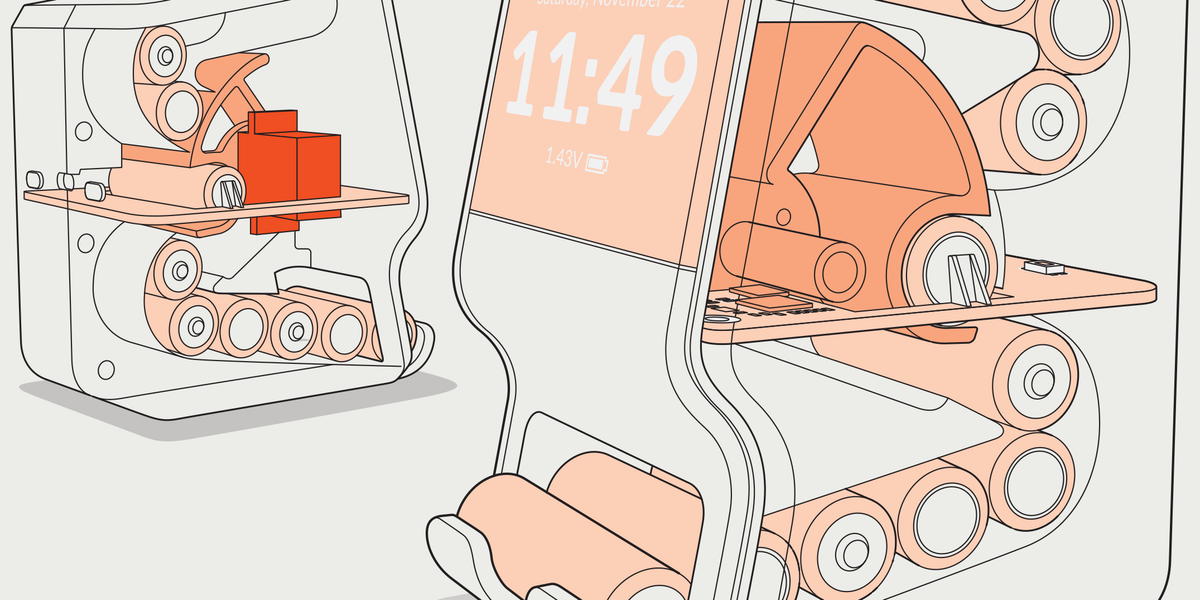

A handful of 3D-printed components [bottom], a servo and display [middle] and a single printed circuit board [top] are all that’s wanted for the Spinc charger. James Provost
But it surely’s additionally true that recharging detachable batteries could be a ache: You must load them right into a charger, which usually holds not more than 4 batteries at a time, and take care to place them in the best manner. In any other case you get no charging at greatest and irreversible injury to the cell and even overheating at worst.
To ease this ache level, I created the Spinc, a DIY system that fees as much as seven NiMH AA batteries at a time and routinely figures out the polarity of every cell earlier than charging it; when completed, it drops the batteries right into a hopper. You’ll be able to examine on the charging standing by way of a show that doubles as a clock.
In my day job, I work on industrial automobiles as an EE in a midsize German firm. However I got here to this challenge on account of a private curiosity in low-power electronics and after a fruitless try to reap the final dregs of energy from some nonrechargeable batteries. That failure—in a nutshell, my design wanted a buffer battery that needed to be recharged, which defeated the entire function of the challenge—acquired me desirous about rechargeable cells.
The toughest a part of creating the Spinc was a self-imposed problem. I wished the charger to be compact and intuitive to make use of. This meant spending numerous time perfecting the mechanism that takes a battery from the highest of the charger, locations and holds it between two electrodes whereas charging, after which drops the battery out the underside earlier than resetting and grabbing the following cell. A variety of cautious iterations later, I had a set of seven 3D-printer information to create the components that assemble to type the case and mechanism of the Spinc. To that, you simply want so as to add the show, servo motor, and a printed circuit board with all of the remaining parts, plus an infrared proximity sensor that detects when a battery has been inserted and is able to be positioned between the charging electrodes.
To permit the battery to be charged no matter which manner it’s put into the charger, I used a traditional H-bridge circuit, which is generally used to let DC motors run in both path, with just a few modifications that allow it work at low voltages.
I made a decision to make use of a devoted built-in circuit to handle the precise charging, with thermistors to be careful for overheating. Whereas I might have used a microcontroller and written my very own software program to observe the battery, NiMH cells have a really flat charging curve, and it’s simple to overshoot the charging cycle. Utilizing an IC saved me from numerous testing, and in addition gave me the power to make use of a fast-charging mode.
Nevertheless, it didn’t save me from some trial and error. The primary charger IC I used was attractively compact at 2 by 2 millimeters. Nevertheless, after I tried charging an AA battery, I found that the producer assumed the top person can be charging two to 4 batteries at a time, all connected in sequence. Charging only a single battery meant the IC’s linear voltage regulator needed to dissipate extra warmth than meant, and it rapidly burned the chip out. I ultimately discovered a considerably bigger (5.15 by 4.4 mm) charger IC that makes use of a switched-mode regulator and will deal with the job. Discovering that IC took some time, although, as the recognition of lithium batteries has diminished the supply of supporting parts for NiMH.
The charging curve of NiMH follows a sluggish curve, with the battery’s voltage exhibiting a dip of simply 2 millivolts when absolutely charged, which is well overshot and will result in cell injury.James Provost
The charger IC is linked to an RP2040 microcontroller, which stories the battery standing on an LCD show. The RP2040 can be liable for monitoring the proximity sensor and driving the servo that controls the interior feed mechanism, in addition to responding to the Spinc’s push-button controls, which allow you to set the clock and begin charging the batteries. All the system is powered by way of a USB-C socket.
Many of the electronics are surface-mounted on a PCB that has a big heart cutout to permit the batteries to move via it. I designed the PCB in KiCad and had it fabricated by JLCPCB. To make it simpler to manufacture the boards appropriately, I didn’t attempt to specify 90-degree angles for the corners of the middle cutout. As an alternative, I went with rounded corners, that are simpler for the chopping tooling to comply with.
The result’s a desktop charger that’s as handy to make use of as attainable. A full set of PCB schematics, invoice of supplies, 3D printer information, and firmware information can be found from the project page on GitHub. I hope it helps make sure that everytime you want a freshly charged NiMH battery, there’s one proper at hand!
