It seems like a NASA pipe dream: a brand new spacecraft thruster that’s as much as 40 p.c extra energy environment friendly than right this moment’s. Even higher, its gas prices lower than a thousandth as a lot and weighs an eighth of the mass. A startup known as Orbital Arc claims it could actually make such a thruster.
With this design, “we are able to go from a thruster that’s about a number of inches throughout and several other kilograms to a thruster on a chip that’s about an inch throughout and has the identical thrust output, however weighs about an eighth as a lot,” the corporate’s founder, Jonathan Huffman, says.
Based on Orbital Arc the {hardware} could be sufficiently small to suit on the smallest low-earth orbit satellites however generate sufficient energy for an interplanetary mission. Such cheap thrust might deliver significant financial savings for satellite operators hoping to dodge debris, or mission operators aiming to ship probes to distant planets.
The important thing to those improvements is a mix of low-cost, available gas, MEMS microfabrication, and a robust love of sci-fi.
Designing a Higher Thruster
Thrusters typically work by creating after which expelling a plasma, pushing a spacecraft in the other way. Inside ever-popular Hall thrusters, a magnetic area traps electrons in a decent, round orbit. A noble fuel—generally xenon—drifts right into a slim channel the place it collides with the circulating cost knocking off electrons and ionizing it into plasma. A high-voltage electric field then rockets the plasma out the exhaust.
Orbital Arc’s know-how appears a bit completely different and took place virtually coincidentally. Huffman was a biotech guide and self-described “sci-fi nerd” who, in his spare time, had been commissioned to design fictitious know-how for a futuristic online game. He had to determine how plane may maneuver 250 years from now to make the sport controls practical, and so he began researching state-of-the-art propulsion techniques.
He rapidly got here to grasp a limitation of present ion thrusters he thought may very well be improved upon inside the coming centuries, and (spoiler alert) presumably sooner: if a mission requires extra thrust, its thruster must be heavier. However crucially, “there’s a sure level at which including extra mass to the thruster negates the entire advantages you may get from further thrust,” he says. So, to retain these advantages, thrusters have to be small however mighty.
Huffman’s familiarity with biology labs gave him an surprising edge when it got here to propulsion design. By his job, he realized about nanoscale suggestions—nozzles that emit ions—used to generate intense electromagnetic fields for biomedical analysis. They’re present in mass spectrometers, devices that determine unknown chemical substances by changing them into ions, accelerating them, and watching how they fly.
He suspected that such a system may very well be miniaturized much more to make the ionization course of in a thruster. After a yr and a half of growing the idea, Huffman was satisfied that his concept for a small thruster had potential past a online game.

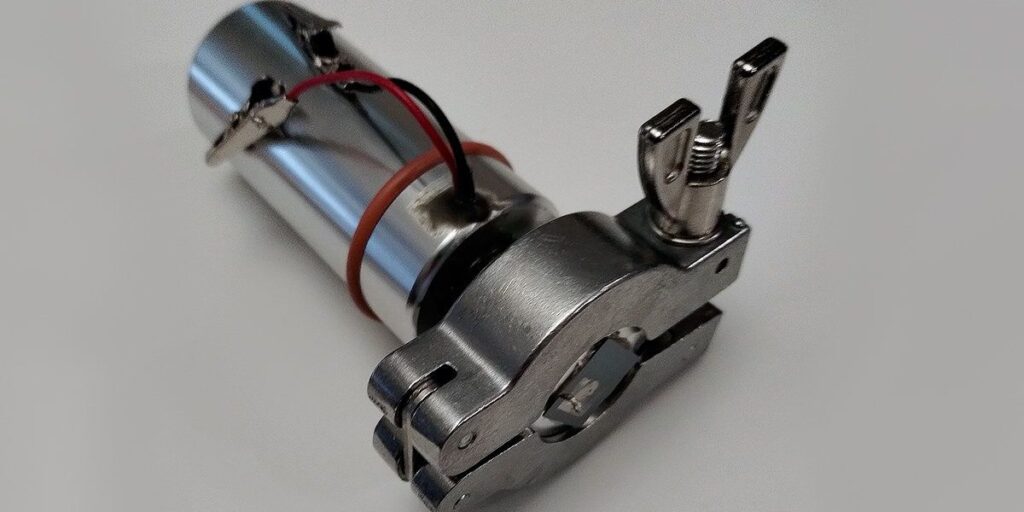

And he was proper. Every Orbital Arc thruster has a chip at its coronary heart with thousands and thousands of micrometer-scale, positively charged suggestions embedded in it and channels to direct fuel stream—naphthalene flows in, and ions stream out.
As naphthalene molecules move the charged suggestions, the molecules develop into polarized—right here, meaning a molecule’s electrons bunch up on one in every of its sides. Due to the uneven area created by the cost, the molecules get dragged in the direction of a tip and are then trapped there, unable to flee till they launch electrons.
As soon as they launch electrons, “you could have an ion that’s on the level of a very sharp positively charged object, and it itself is now positively charged. So it accelerates,” Huffman explains. The repelled ions fly by and spray out into area, propelling the spacecraft ahead.
A bonus of this design is the ability financial savings that come from avoiding the interior plasma era that different thrusters depend on, Huffman says. “Plasmas have losses as a result of every little thing’s in a giant soup combined collectively,” Huffman explains. Free electrons in a plasma can recombine with ions to provide impartial atoms “and now I’ve misplaced the vitality that I put in to make that charged particle. It’s a waste of energy.” Latest calculations present the naphthalene nanotip thruster offering a 30 to 40 p.c enchancment in power efficiency, he claims.
By avoiding plasmas all collectively, the Orbital Arc design is ready to capitalize on the ability financial savings, as proven in a current demonstration. In a current check, simply six of Orbital Arc’s suggestions had been capable of generate about thrice extra ion present than an array of 320,000 suggestions from a bunch from MIT, Huffman says.
Two and a half years after his “aha” second (and after “constructing the entire darn factor in Excel”), Huffman is the CEO of Orbital Arc, a startup testing 4 working prototypes of its tiny tips-on-chips.
The thruster is just not solely revolutionary for its measurement, but additionally for its gas. Naphthalene—the principle ingredient of mothballs—is a available byproduct of oil refineries. The compound could scent dangerous, nevertheless it’s protected to deal with and intensely low-cost, Huffman says, costing round US $1.50 per kilogram in comparison with some $3,000 per kilogram for xenon.
Orbital Arc’s use of naphthalene aids of their shrinking of product prices, which the corporate claims is at one p.c of conventional Corridor thrusters. “I believe that’s plausible,” says Jonathan MacArthur, a postdoctoral researcher at Princeton College’s Electric Propulsion and Plasma Dynamics Laboratory. “What stays to be seen is, okay, it’s low-cost, but when I put diesel in my fuel automobile as a result of it’s on sale, that doesn’t essentially bode nicely for the engine in my automobile.” He needs the startup would launch information to again up their price claims—and whereas they’re at it, information to again up efficiency claims, as nicely.
From Prototype to Flight
For now, within the prototype stage, every chip incorporates solely six suggestions, fabricated utilizing MEMS manufacturing processes in a cleanroom at Oak Ridge National Laboratory. However the subsequent step is to fabricate a full-scale model of the chip in a college lab, Huffman says.
Then, the corporate might want to construct the thruster that goes across the chip. “That’s a comparatively easy system. It’s a valve, it’s a number of wires, it’s a number of structural parts. Very, very simple,” Huffman claims. He says he’ll must combine all of these components earlier than working by vibration testing, radiation testing, thermal biking, and different steps on the way in which to attain flight qualification. “Two years from now, I can have a product that’s sellable, in all probability.”
Huffman thinks Orbital Arc’s preliminary prospects could be small groups, like startups or analysis teams. He’s assured that they’ll be keen to strive the brand new thrusters, regardless of the dangers inherent to new applied sciences, due to the anticipated efficiency at low price. “So some of us simply received’t have any alternative however to purchase it, even when it hasn’t flown earlier than. In the event that they need to do the mission, they’re going to take the chance,” he says.
Princeton’s MacArthur is skeptical of that declare. “While you’re selecting a propulsion system, typically information and heritage is every little thing.” He’s not so certain that prospects will probably be keen to tackle the chance of a brand new thruster and not using a historical past of flight.
Nonetheless, some CubeSat-scale missions could agree to make use of new thrusters at a reduction, suggests Oliver Jia-Richards, who research in-space propulsion on the College of Michigan. Clients may additionally be keen to take an opportunity on Orbital Arc as a result of different startups, like Enpulsion, have been just lately profitable with their new electrical propulsion know-how, he says. However “with this sort of factor, there’s at all times dangers.”
After focusing on small missions, Huffman needs to “construct one thing the place we exhibit a bit.” He notes that, as of but, no satellite tv for pc has accomplished a spherical journey to the moon after a yr in Earth’s orbit with out refueling. It’s funding dependent and there could also be extra engaging alternatives that come up, “so we’ll see,” he says.
And he’s not stopping there. “We’re tapping right into a mathematical actuality,” Huffman says. “If you happen to reduce dry mass off of spacecraft, you achieve exponential advantages in its efficiency due to the way in which the rocket equation works. You get exponentially penalized for further dry mass.”
By integrating Orbital Arc’s thrusters, he says, a mission might reduce photo voltaic panel and energy provide mass as a result of it drive is extra energy environment friendly, reduce tank mass as a result of naphthalene doesn’t require a strain vessel not like xenon, and reduce thruster mass itself. With these financial savings, “you go from flying one-way science missions to Mars to flying two-way human rated missions to Jupiter with out refueling,” Huffman claims.
So whereas the thruster is Orbital Arc’s first step, Huffman envisions an ultra-light spacecraft bus subsequent—arriving lengthy earlier than the far-future period of the online game that impressed it.
