There’s no such factor as an entire vacuum. Even within the cosmic void between galaxies, there’s an estimated density of about one hydrogen or helium atom per cubic meter. However these estimates are largely theoretical—nobody has but launched a sensor into intergalactic area and beamed again the consequence. On prime of that, we have now no technique of measuring vacuums that low.
A minimum of, not but.
Researchers at the moment are growing a brand new vacuum-measurement device that could possibly detect decrease densities than any current strategies can. This new quantum sensor makes use of particular person atoms, cooled to only shy of absolute zero, to function targets for stray particles to hit. These atom-based vacuum measurers can detect decrease atomic concentrations than ever earlier than, they usually don’t require calibration, making them a superb candidate to function an ordinary.
“The atom was already our commonplace for time and frequency,” says Kirk Madison, professor of physics on the College of British Columbia (UBC), in Vancouver, and one of many pioneers of cold-atom-based vacuum-measurement know-how. “Wouldn’t it’s cool if we may make an atom the usual for vacuum measurement as properly?”
This quantum-sensor know-how guarantees a twin achievement in scale: Not solely does it lengthen our skill to measure extremely rarefied circumstances with unprecedented sensitivity, it additionally establishes the basic reference level that defines the dimensions itself. By eliminating the necessity for calibration and serving as a major commonplace, this atom-based method doesn’t simply measure the farthest edges of the density spectrum—it may change into the very ruler by which all different vacuum measurements are in contrast.
Vacuum measurement on Earth
Whereas people haven’t but succeeded in making vacuum as pure as it’s in deep space, many earthly functions nonetheless require some degree of vacancy. Semiconductor manufacturing, massive physics experiments in particle and wave detection, some quantum-computing platforms, and surface-analysis instruments, together with X-ray photoelectron spectroscopy, all require so-called ultrahigh vacuum.
At these low ranges of particles per unit quantity, vacuum is parameterized by strain, measured in pascals. Common atmospheric strain is 105 Pa. Ultrahigh vacuum is taken into account to be something lower than about 10-7 Pa. Some functions require as little as 10-9 Pa. The deepest depths of area nonetheless maintain the nothingness file, reaching beneath 10-20 Pa.
The strategy of alternative for measuring strain within the ultrahigh vacuum regime is the ionization gauge. “They work by a reasonably simple mechanism that dates again to hoover tubes,” says Stephen Eckel, a member of the cold-atom vacuum-measurement group on the Nationwide Institute of Requirements and Expertise (NIST).

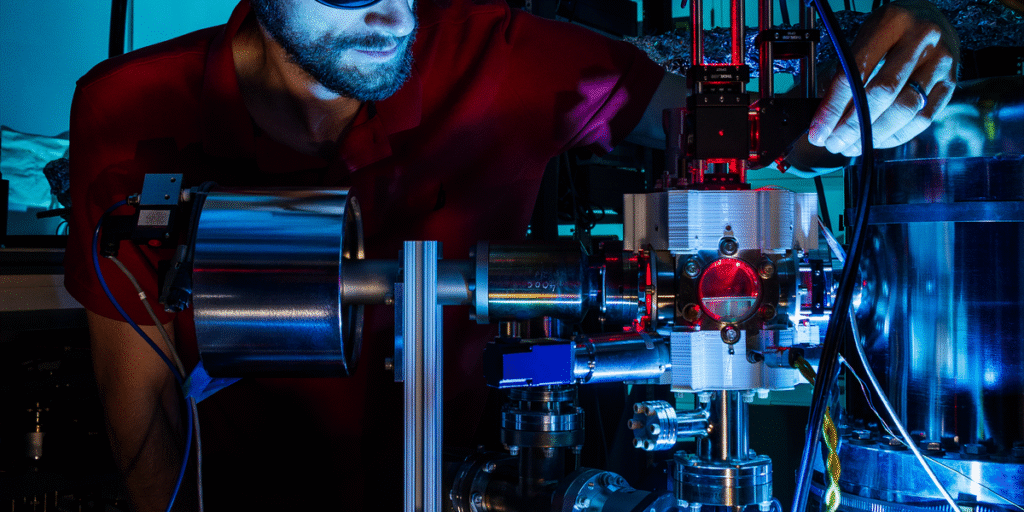

A conveyable cold-atom vacuum-measurement device [top] detects the fluorescence of roughly 1 million lithium atoms [bottom], and infers the vacuum strain primarily based on how shortly the fluorescence decays. Photographs: Jayme Thornton
Certainly, an ionization gauge has the identical primary parts as a vacuum tube. The gauge incorporates a heated filament that emits electrons into the chamber. The electrons are accelerated towards a positively charged grid. En path to the grid, the electrons often collide with atoms and molecules flying round within the vacuum, knocking off their electrons and creating positively charged ions. These ions are then collected by a negatively charged electrode. The present generated by these optimistic ions is proportional to the variety of atoms floating about within the vacuum, giving a strain studying.
Ion gauges are comparatively low cost (below US $1,000) and commonplace. Nonetheless, they arrive with just a few difficulties. First, though the present within the ion gauge is proportional to the strain within the chamber, that proportionality fixed will depend on plenty of tremendous particulars, such because the exact geometry of the filament and the grid. The present can’t be simply calculated from {the electrical} and bodily traits of the setup—ion gauges require thorough calibrations. “A full calibration run on the ion gauges is sort of a full month of any individual’s time,” says Daniel Barker, a physicist at NIST who’s additionally engaged on the cold-atom vacuum-measurement challenge.
Second, the calibration companies offered by NIST (amongst others) calibrate right down to solely 10-7 Pa. Efficiency beneath that strain is questionable, even for a well-calibrated gauge. What’s extra, at decrease pressures, the warmth from the ion gauge turns into an issue: Hotter surfaces emit atoms in a course of known as outgassing, which pollutes the vacuum. “In case you’re capturing for a vacuum chamber with actually low pressures,” Madison says, “these ionization gauges really work in opposition to you, and many individuals flip them off.”
Third, the studying on the ion gauge relies upon very strongly on the varieties of atoms or molecules current within the vacuum. Several types of atoms may produce readings that modify by as much as an element of 4. This variance is okay if you already know precisely what’s inside your vacuum chamber, or when you don’t want that exact a measurement. However for sure functions, particularly in analysis settings, these considerations are important.
How a cold-atom vacuum commonplace works
The thought of a cold-atom vacuum-measurement device developed as a stunning facet impact of the research of chilly atoms. Scientists first began cooling atoms down in an effort to make higher atomic clocks again within the Nineteen Seventies. Since then, cooling atoms and trapping them has change into a cottage trade, giving rise to optical atomic clocks, atomic navigation systems, and neutral-atom quantum computers.
These experiments need to be carried out in a vacuum, to stop the encircling setting from heating the atoms. For many years, the vacuum was considered merely a finicky issue to be carried out in addition to attainable. “Vacuum limitations on atom traps have been identified for the reason that daybreak of atom traps,” Eckel says. Atoms flying across the vacuum chamber would collide with the cooled atoms and knock them out of their entice, resulting in loss. The higher the vacuum, the slower that course of would go.
The most typical vacuum-measurement device within the high-vacuum vary at this time is the ion gauge, principally a vacuum tube in reverse: A scorching filament emits electrons that fly towards a positively charged grid, ionizing background atoms and molecules alongside the best way. Jayme Thornton
UBC’s Kirk Madison and his collaborator James Booth (then on the British Columbia Institute of Expertise, in Burnaby), have been among the many first to show that considering on its head again within the 2000s. As an alternative of battling the vacuum to protect the trapped atoms, they thought, why not use the trapped atoms as a sensor to measure how empty the vacuum is?
To know how they did that, take into account a typical cold-atom vacuum-measurement machine. Its foremost part is a vacuum chamber stuffed with a vapor of a specific atomic species. Some experiments use rubidium, whereas others use lithium. Let’s name it lithium between buddies.
A tiny quantity of lithium fuel is launched into the vacuum, and a few of it’s captured in a magneto-optical entice. The entice consists of a magnetic subject with zero depth on the heart of the entice, rising step by step away from the middle. Six laser beams level towards the middle from above, beneath, the left, the best, the entrance, and the again. The magnetic and laser forces are organized in order that any lithium atom that may in any other case fly away from the middle is most certainly to soak up a photon from the lasers, getting a momentum sit back into the entice.
The entice is sort of shallow, which means that scorching atoms—above 1 kelvin or so—won’t be captured. So the result’s a small, confined cloud of actually chilly atoms, on the heart of the entice. As a result of the atoms take up laser mild often to maintain them within the entice, in addition they reemit mild, creating fluorescence. Measuring this fluorescence permits scientists to calculate what number of atoms are within the entice.
To make use of this setup to measure vacuum, you load the atoms into the magneto-optical entice and measure the fluorescence. Then, you flip off the sunshine and maintain the atoms in simply the magnetic subject. Throughout this time, background atoms within the vacuum will probability upon the trapped atoms, knocking them out. After a short time, you flip the sunshine again on and test how a lot the fluorescence has decreased. This measures what number of atoms received knocked out, and subsequently what number of collisions occurred.
The explanation you want the entice to be so shallow and the atoms to be so chilly is that these collisions are very weak. “Just a few collisions are fairly energetic, however many of the background fuel particles fly by and, like, whisper to the trapped atom, and it simply gently strikes away,” Madison says.
This methodology has a number of benefits over the standard ion-gauge measurement. The atomic methodology doesn’t want calibration; the speed at which fluorescence dims relying on the vacuum strain might be calculated precisely. These calculations are concerned, however in a paper printed in 2023 the NIST group demonstrated that the newest methodology of calculation exhibits glorious settlement with their experiment. As a result of this system doesn’t require calibration, it may well function a major commonplace for vacuum strain, and even probably be used to calibrate ion gauges.
The cold-atom measurement can also be a lot much less finicky in terms of the precise contents of the vacuum. Whether or not the vacuum is contaminated with helium or plutonium, the measured strain will differ by maybe only some p.c, whereas the ion gauge sensitivity and studying for these particles may differ by an order of magnitude, Eckel says.
Chilly atoms may additionally probably measure a lot decrease vacuum pressures than ion gauges can. The present lowest strain they’ve reliably measured is round 10-9 Pa, and NIST scientists are engaged on determining what the decrease boundary may be. “We actually don’t know what the decrease restrict is, and we’re nonetheless exploring that query,” Eckel says.
No vacuum is totally empty. The diploma to which vacuum strain approaches pure nothingness is measured in pascals, with Earth’s ambiance clocking in at 105 Pa and intergalactic area at a measly 10-20. In between, the brand new cold-atom vacuum gauges can measure additional alongside the vacancy scale than the well-established ionization gauges can.
Sources: S. Eckel (cold-atom gauge, ionization gauge); Okay. Zou (molecular-beam epitaxy, chemical vapor deposition); L. Monteiro, “1976 Standard Atmosphere Properties” (Earth’s ambiance); E.J. Öpik, Planetary and House Science (1962) (Mars, moon ambiance); A. Chambers, ‘Fashionable Vacuum Physics” (2004) (interplanetary and intergalactic area)
After all, the cold-atom method additionally has drawbacks. It struggles at larger strain, above 10-7 Pa, so its functions are confined to the ultrahigh vacuum vary. And, though there are not any business atomic vacuum sensors accessible but, they’re prone to be rather more costly than ion gauges, at the very least to start out.
That stated, there are various functions the place these units may unlock new potentialities. At massive science experiments, together with LIGO (the Laser Interferometer Gravitational-Wave Observatory) and ones at CERN (the European Group for Nuclear Analysis), well-placed cold-atom vacuum sensors may measure the vacuum strain and likewise assist decide the place a possible leak may be coming from.
In semiconductor improvement, a very promising software is molecular-beam epitaxy (MBE). MBE is used to provide the few, extremely pure semiconductor layers utilized in laser diodes and units for high-frequency electronics and quantum applied sciences. The approach capabilities in ultrahigh vacuum, with pure components in separate containers heated on one finish of the vacuum. The weather journey throughout the vacuum till they hit the goal floor, the place they develop one layer at a time.
Exactly controlling the proportion of the ingredient components is important to the success of MBE. Usually, this requires plenty of trial and error, build up thin films and checking whether or not the proportions are appropriate, then adjusting as wanted. With a cold-atom vacuum sensor, the amount of every component emitted into the vacuum might be detected on the fly, drastically dashing up the method.
“If this system may very well be utilized in molecular-beam epitaxy or different ultrahigh vacuum environments, I believe it should actually profit supplies improvement,” says Ke Zou, an assistant professor of physics at UBC who research molecular-beam epitaxy. In these high-tech industries, researchers could discover that the flexibility to measure nothing is all the pieces.
